F.A.Q. Phantom II



  1. 1. What is Phantom II?
  2. 2. Why choose Phantom II?
  3. 3. Which sources can I play on Phantom II?
  4. 4. Can I set up Phantom II in stereo?
  5. 5. Does Phantom II have a stand-by mode?
  6. 6. What is the minimum requirement for the new Devialet apps (which is piloting Phantom II)?
  7. 7. Is the bluetooth's pairing mode on Bluetooth to Phantom II "secure"?
  8. 8. Does Phantom II require a power cable?
  9. 9. Is any wall mount available?
  10. 10. How can I update my Phantom II?
  11. 11. What is the AV sync option and how to access it?
  12. 12. Can I modify the communication mode between 2 Phantom II set in Stereo?
  13. 13. Can I stream from a Laptop or a Desktop?



What is Phantom II?

Phantom II is part of the Phantom  family and packs all the Devialet  revolutionary technologies: ADH®, SAM® and more.

Our Engineers worked on miniaturizing these technologies to reach the size of Phantom II.

Phantom II is available in two models:

  • Phantom II 95 dB  (Iconic White or Black Matte)
  • Phantom II 98 dB (Iconic White or Black Matte)

Phantom II's dimensions are:

  • Width: 157 mm
  • Height: 168 mm
  • Depth: 219 mm

It weighs 4.3 kg (10 pounds)

In the box, you will find:

  • Phantom II
  • a power cable
  • a user guide

Why choose Phantom II?

Phantom IIis a new breed of wireless speaker. By stretching size and performance beyond reasonable limits, Devialet engineers have brought to life the only ultra-compact home sound system capable of delivering high fidelity and physical impact, whatever volume you listen at. It has the most extreme concentration of high technology known to any sound system: 981 parts protected by 100+ patents.

Phantom II'sfrequency response is extreme: from 18Hz to 21kHz with 0 distortion, 0 saturation and 0 background noise even at full power.

Top

Which sources can I play on Phantom II?

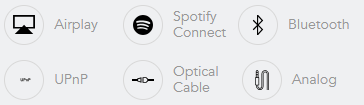

Phantom II is natively compatible with Spotify Connect, Airplay, UPnP and Bluetooth ans will support more streaming protocols in the future.

The new Devialet app is dedicated to Phantom II only and is available for iOS and Android.

It lets you install and set up and update your Phantom II in a matter of easy steps to enjoy the best audio experience. And by connecting Phantom II to your Wi-Fi network, you'll be able to access all your favorite music streaming services in high quality.

Use your favorite music app and play your music to Phantom II with your preferred protocol (Bluetooth, Airplay, UPnP...) or use the Analog/Optical jack input.

Top

Can I set up Phantom II in stereo?

Yes it's possible to pair 2 Phantom II together, and playing them in Stereo (Left & Right).

For pairing 2 Phantom II you need to use same model (2 Phantom II 95 dB or 2 Phantom II 98 dB).

To make a Stereo pair please follow the below video:



Top

Do I need a Dialog in a one or more Phantom II setup?

There is no need for Dialog for the Phantom II . Dialog is only for Phantom Premier  and is not compatible with Phantom II.

Top

Does Phantom II have a stand-by mode?

There is a stand-by mode in Phantom II which can be activated by pressing the back button during few second. Once it's activated the light on the top of the shell will fade out.

Top

What is the minimum requirement for the new Devialet apps (which is piloting Phantom II)?

The new apps is only avaialble on IOS (mobile and tablet) and Android (mobile and tablet).

Minimum requirement is the following:

  • IOS 11 or above
  • Android 5.x or above

On a IOS tablet, the app also displays on landscape mode.

Top

Is the Bluetooth's pairing mode to Phantom II "secure"?

There is a specific process to pair your source (mobile or tablet) to the Phantom II. If you did not engage the pairing yourself with the apps or the Bluetooth button on the top of the casing you won't be able to connect your source to the Phantom II.



Top

Does Phantom II require a power cable?

Yes, the power delivered by Phantom II requires to be connected to a power outlet.

Top

Is any wall mount available?

Wall mount for Phantom II is now available into our partners place, our retail but also on our website. Product is name Gecko

Top

How can I update my Phantom II

To update your Phantom II, you will need to:

  1. Open the Devialet Application
  2. Go into Settings
  3. Click on "System Update"

Or look at the below video:

Top



What is the AV sync option and how to access it?

We put into the apps a new setting to reduce the latencies into Phantom II for all physical inputs.

To acces the option please the steps here

  1. Open the Devialet Application
  2. Select the Room/Device
  3. Click on the device parameters
  4. Toggle on the option AV Sync

Or look at the below video:

Note: In a Stereo setup, if you had modified the latency into one of your Phantom II, please apply the same latency into the second Phantom II, to avoid any difference between the left and right channel.

Note: If you are facing strange sound delivery from the optical/jack input, we recommend you to modify the latencies from your Phantom IIvia the "AV Sync" menu.

Top



Can I modify the communication mode between 2 Phantom II set in Stereo?

When 2 Phantom II are installed in Stereo, they are sharing their streaming flow together via different embedded protocol such as PLC, Ethernet or Wifi.

If you are not using them in Ethernet, the default protocol is PLC which sometime can be obstructed by other device connected to your powerline, to workaround this, please follow instruction below

Note: if you are changing the protocol please select the same protocol into both devices, otherwise you will face some strange sound behavior from your Phantom II.

To acces this option please follow instruction on the below video:



Top

Can I stream from a laptop or a desktop?

Our app is only available for a mobile (Android & IOS), to make a complete setup, it's then required to start with your mobile.

Once the setup is complete, you can then use the Bluetooth or the Airplay to stream music, which means you can control the device via this protocol from a PC or a MAC.

Note: Full control still remains within the app devialet, such as a very precise volume control, switch from a streaming source to another, and trigger in the Jack/optical

Top
