How to setup Phantom Ultimate with Wifi?



To get started with your Phantom Ultimate, you can set it up via Wi-Fi. Follow the steps below to complete the process.



670641f3b66df66b19e1b2a2.pngPlug the power cable included in the Devialet packaging

The LED will start blinking in White

The LED will become white fixe and the speaker will make a boot sound

Install / open Devialet App and set up the product

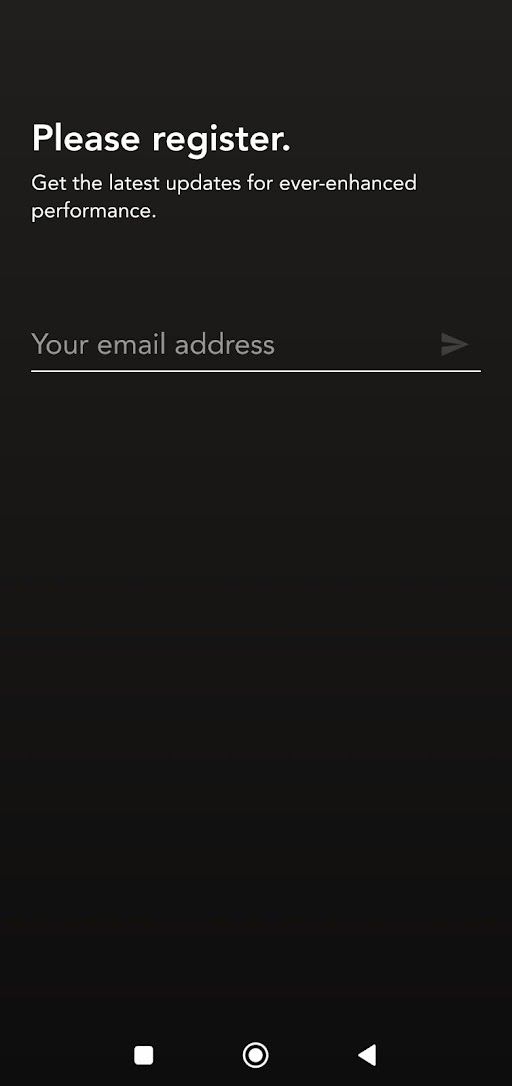

Log in your account on the app. It is mandatory.

Please use the same email address as the one used on your Devialet.com account.

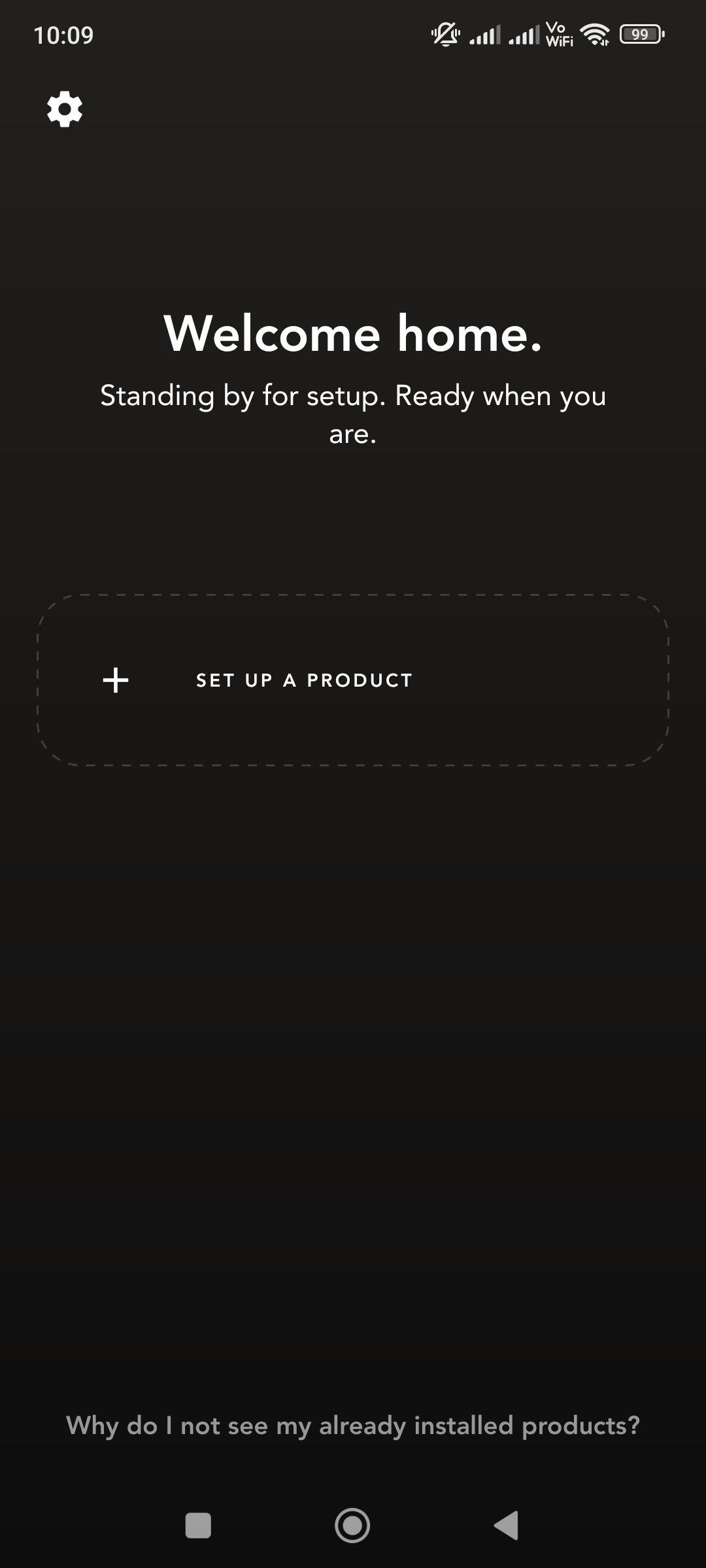

welcome home.jpeg
After log in, the app displays the home screen. Press "set up a product" to set up Devialet Phantom Ultimate.

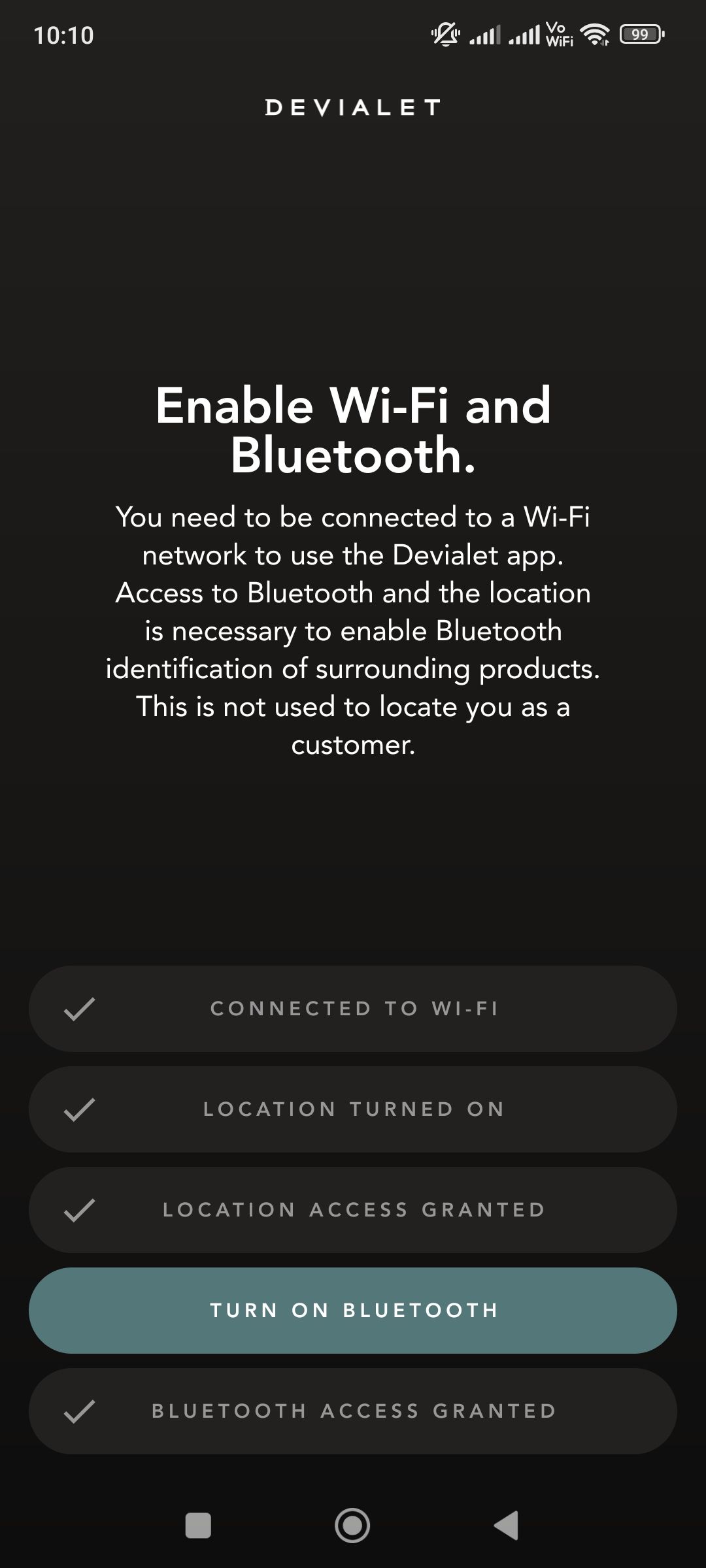

enable wifi and bt.jpeg

The following must be activated on the phone to go to the next page on Devialet App:

  • Wifi
  • Location
  • Location access
  • Bluetooth
  • Bluetooth access

When all these settings are activated on the phone, Devialet app directly goes to the next page of the set up.

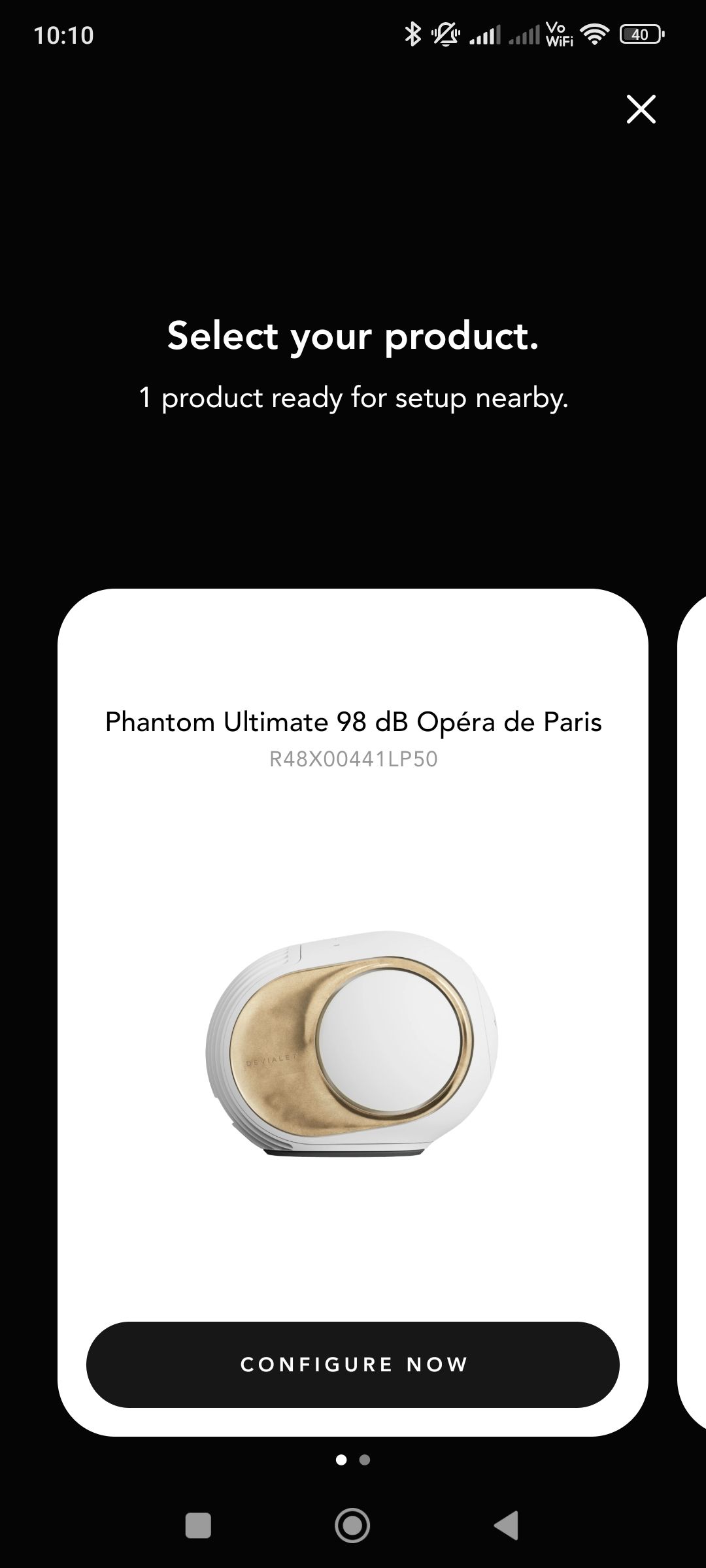

select your product.jpeg
The app then detects the Devialet product pending a setup. Press "configure now."

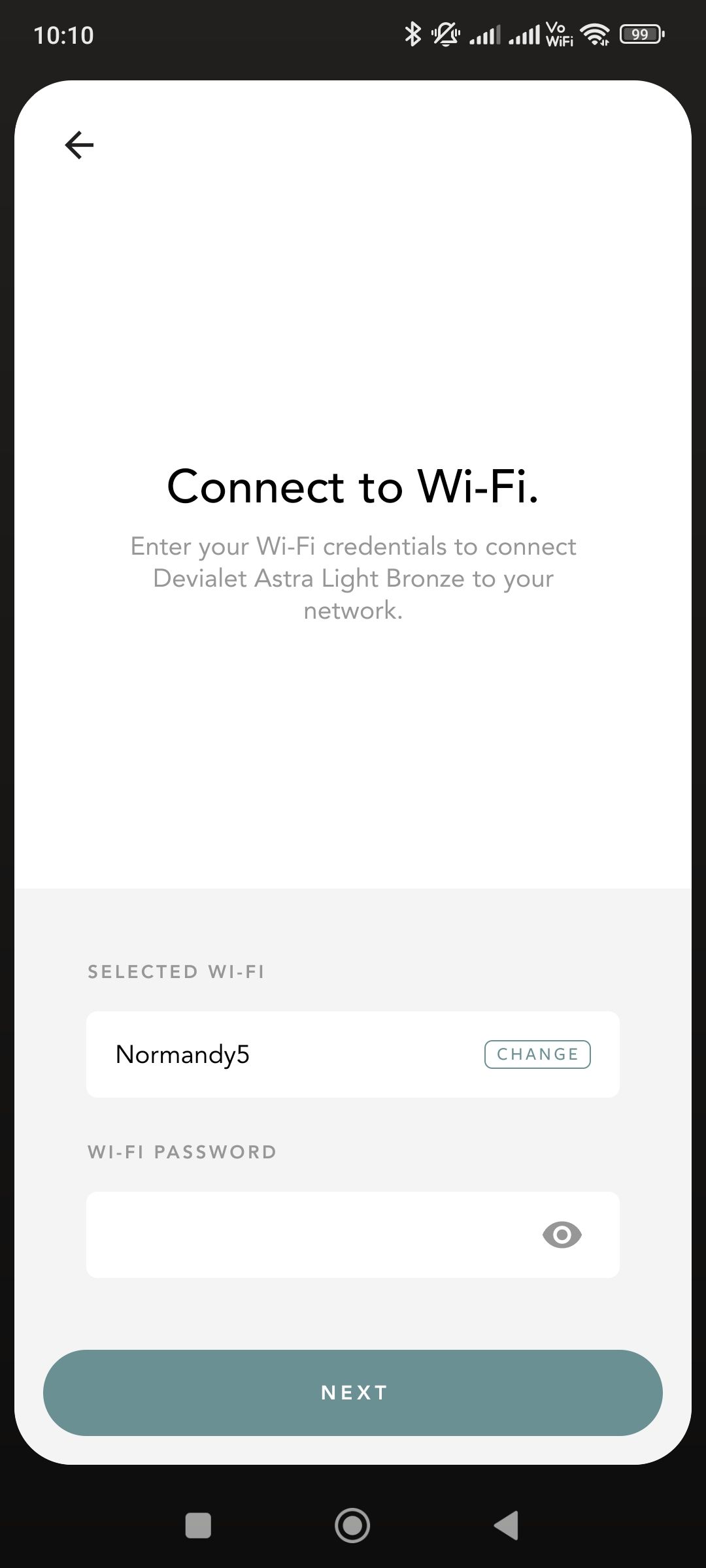

connect to wifi.jpeg

The product detects the home wifi. Select which home wifi you want to connect it to.

If an working ethernet cable is wired, the app will not display this wifi screen and will not ask a password.

Enter the wifi password and press "next"

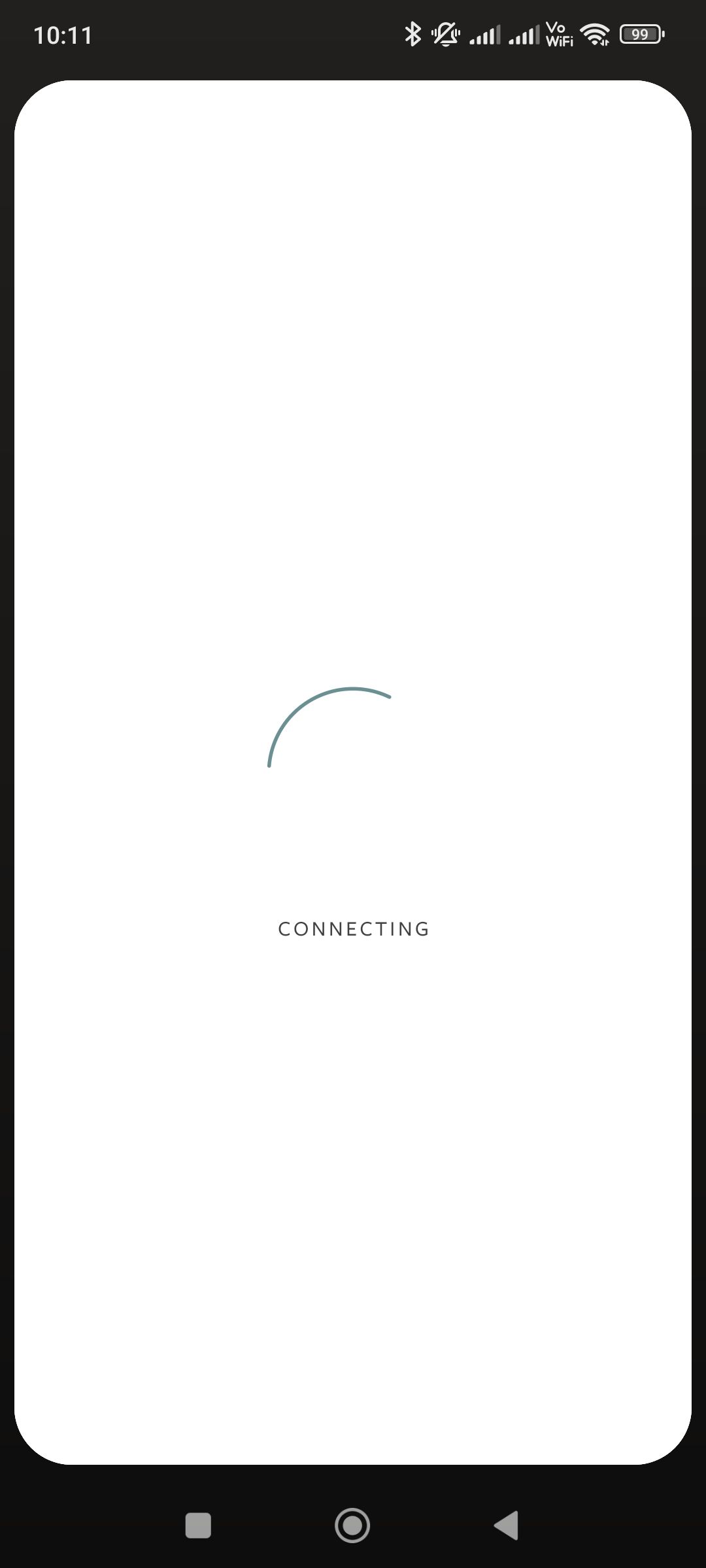

This page means the product is trying to connect to the wifi and get an IP address. It should take less than 1 min.

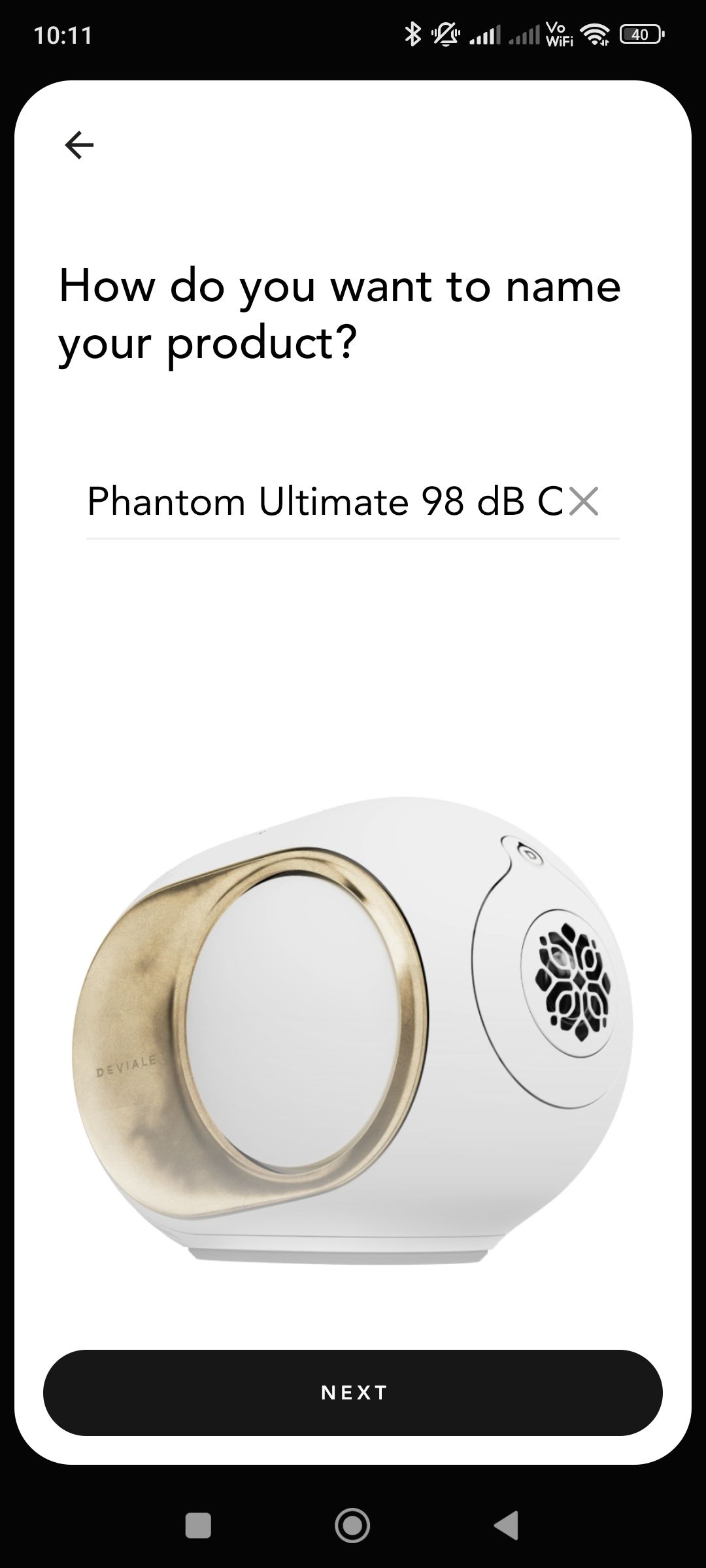

name your product.jpeg

This is where you could name the product. By default the name is "Devialet Ultimate + power."

Press "next."

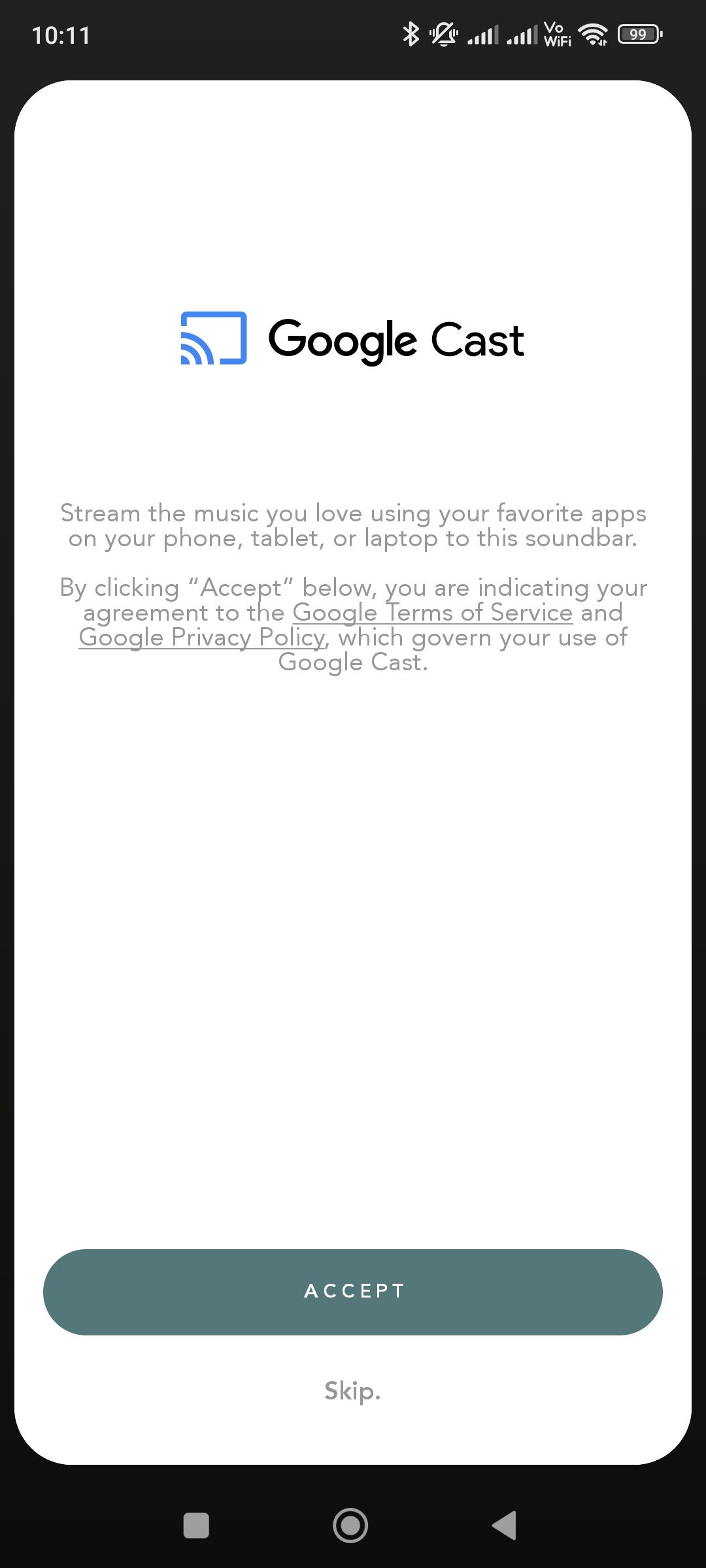

google cast.jpeg

The app will ask you to approve or skip the Google Cast user conditions.

If skipped, you can still activate Google Cast later from the Devialet app.

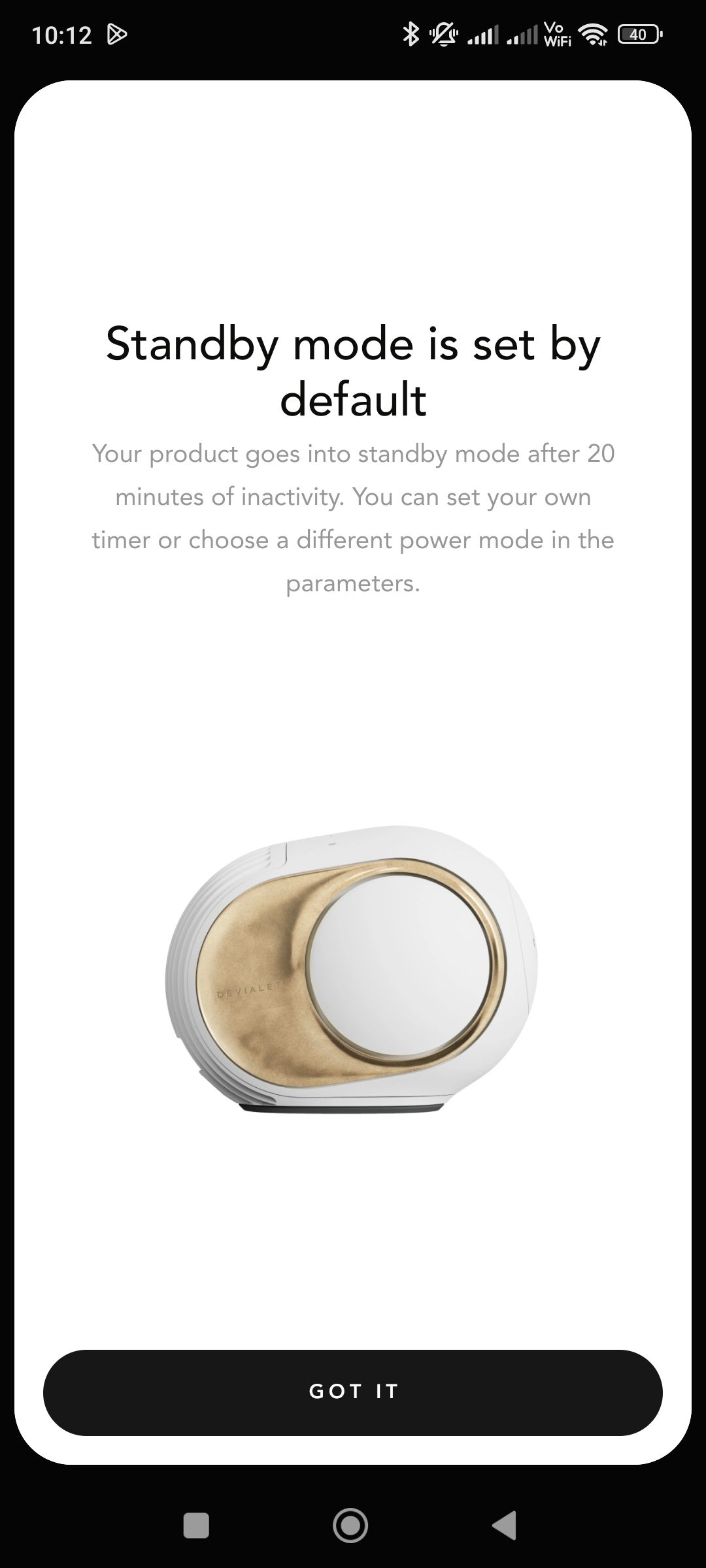

standby mode default.jpeg
There is a standby mode activated by default. The product will turn off after 20 mins without activity.
All done.jpeg

The product is now setup.

Press "done"

If the app detects another product, it will add a button SETUP A NEW PRODUCT under done.

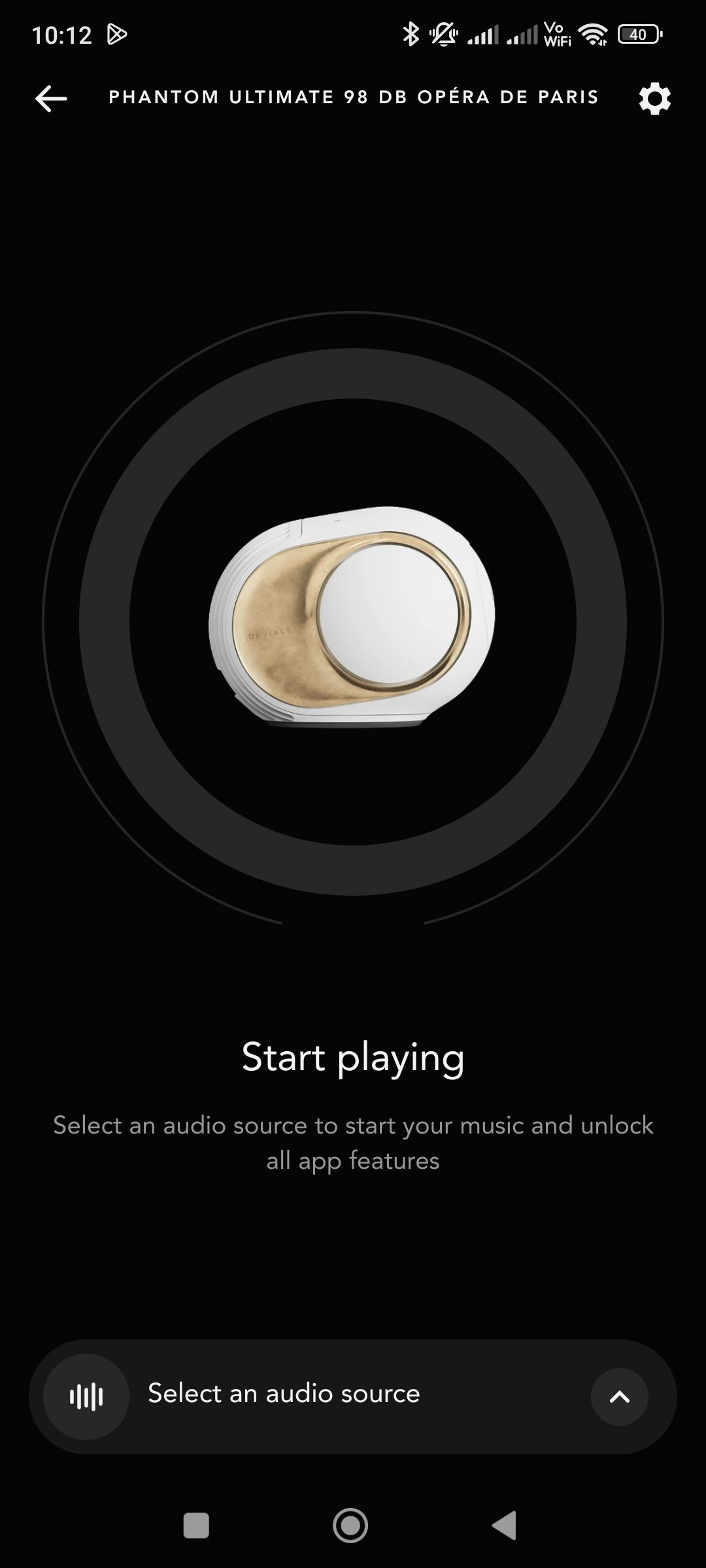

start palying.jpeg
After the set up, the app displays the Devialet Phantom Ultimate home screen (volume and sources)
